Yellow Color 4 Inch PVC Lay Flat Water Hose For Industrial Water Discharge

Product Categories
Asoe Hose Manufacturing Inc.
Contact Now

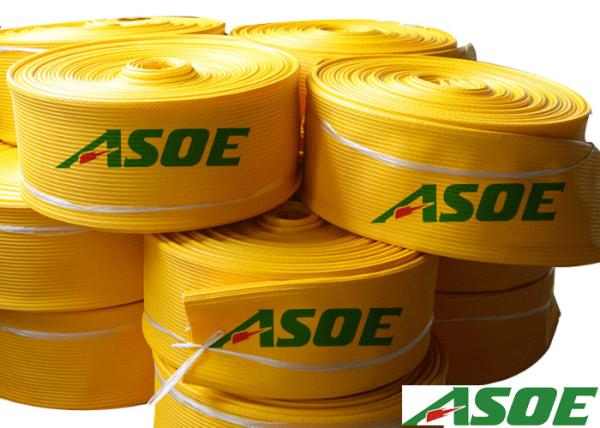

Yellow Color 4 Inch PVC Lay Flat Water Hose For Industrial Water Discharge

Brand Name : ASOE

Model Number : Wovenflex

Certification : ISO

Place of Origin : China

MOQ : 10cm

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000m per week

Delivery Time : depends on your order quantity

Packaging Details : Standard Export Package

Product Name : PVC layflat hose

Raw Material : PVC and NBR Rubber Compound

Application : agricultural irrigation, water discharge, etc.

Standard Color : Yellow or Black or Others

Standard Length : 100, 300,330ft , etc

Contact Now

4 Inch PVC Layflat Hose for Industrial Water Discharge 14bar Working Pressure

Wovenflex is one type of "through-the-weave" heavy duty PVC/NBR layflat hose. This hose features a unique one-piece, through-the-weave construction and attains its higher working pressure from a synthetic woven polyester reinforcement than Spiral plies; its excellent durability is derived from a high-tensile PVC/NBR rubber compound, which completely encases the jacket.

  1. Inner tube and cover: PVC/NBR compound, smooth cover, both tube and cover are co-extruded to obtain maximum bending.
  2. Reinforcement: Circular woven polyester jacket
  3. Operating Temperature Range: From -36° F to 178° F (-37° C to 81° C)
  4. Standard Color: Yellow, other colors available per request
  5. Standard Length: 50ft, 100ft, 300ft/91.5m, 330ft/100m; other lengths available per request;

Wovenflex™ Heavy Duty PVC/NBR Layflat Hose
ID
Wall Thickness
Weight
Working Pressure
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
Bar
PSI
Bar
2
52+1.5
0.11
2.7
0.4
0.6
150,200
10,14
450,600
30,42
2 1/2
64.5+1.5
0.12
2.9
0.59
0.88
150,200
10,14
450,600
30,42
3
78+2.0
0.12
3.1
0.7
1.05
150,200
10,14
450,600
30,42
4
103+2.0
0.13
3.2
0.87
1.29
150,200
10,14
450,600
30,42
6
155+2.5
0.15
3.8
1.5
2.24
150,200
10,14
450,600
30,42
8
204+3.0
0.16
4
2.4
3.5
150
10
450
30

Application: suitable for agricultural irrigation, mining, industrial and construction water discharge, water transfer for quarries, relay supply lines, portable hydrants etc.

  • Recommended for:
  • Agricultural Irrigation Solutions
  • Industrial Water Discharge Solutions
  • Mining Dewatering Solutions
  • other
